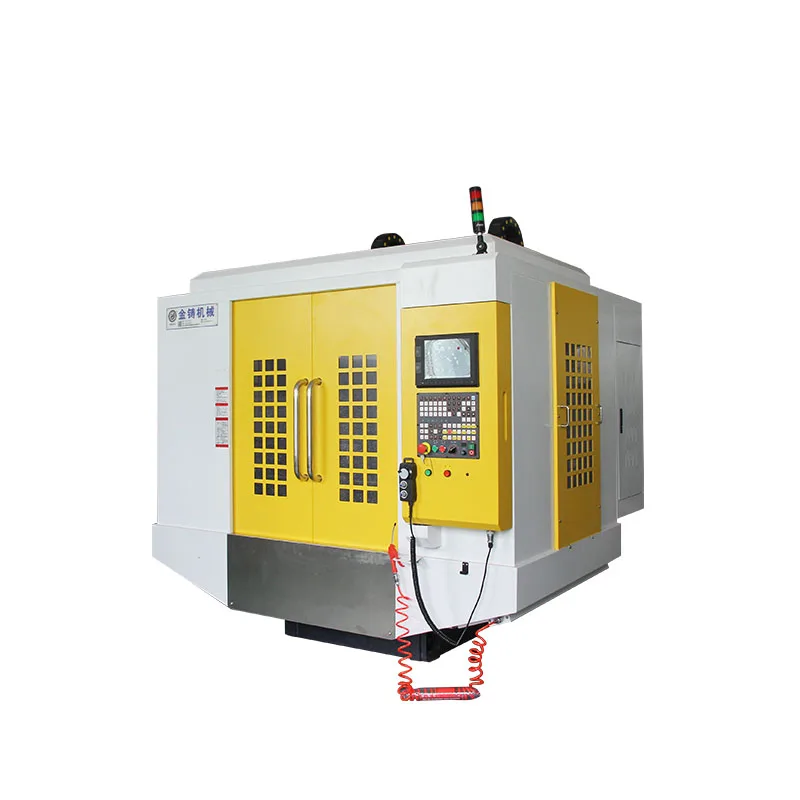

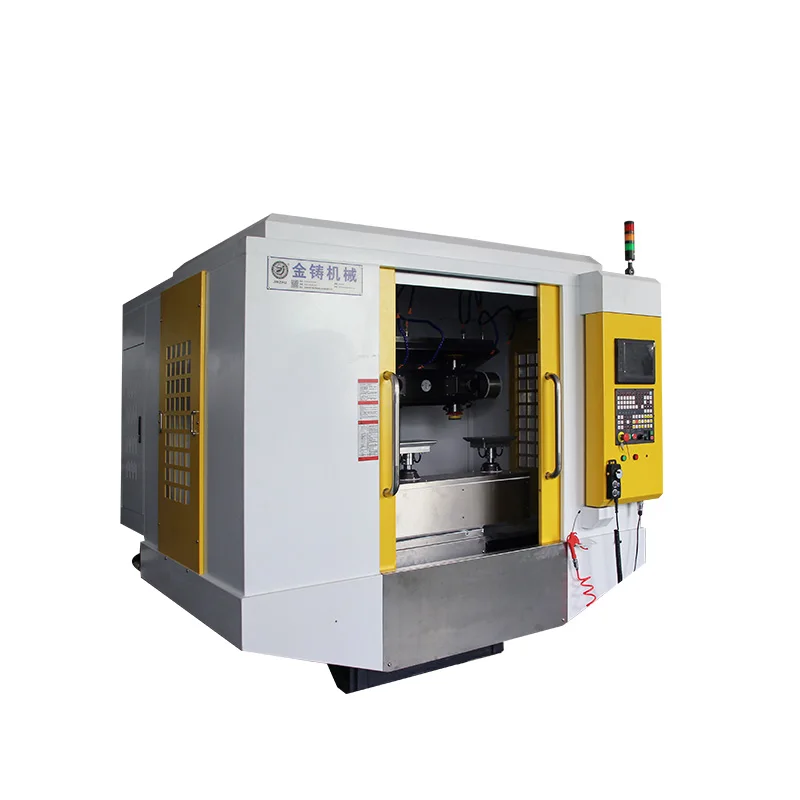

Automatic 4 Axis CNC Polishing Machine with 5 Axis Linkage and 380V Power Supply Vertical Machining Center

Name: Automatic 4 Axis CNC Polishing Machine with 5 Axis Linkage and 380V Power Supply Vertical Machining Center
Brand: JINZHU
Price: 47 USD

Buy cheap Automatic 4 Axis CNC Polishing Machine with 5 Axis Linkage and 380V Power Supply Vertical Machining Center product

Place of Origin : Guangdong, China

Brand Name : JINZHU

MOQ : 1

Price : $47,000-48,000

Power : 10 kW

Weight : 2500 kg

X-axis route : 250mm

Y-axis route : 450mm

Z-axis route : 350mm

A-axis route : -1°~365°

C-axis route : -30°~390°

Rotary table : 192mm

Rotating Speed : 0~10000

Fast-forward speed : 25X25X20

Positioning accuracy : ±0.025

Power supply : 380V-10KVA

Air pressure : 0.4 Mpa

DC power supply : 24V-200W

Leakage switch : 64A

Contact Now

Automatic 4 Axis CNC Polishing Machine with 5 Axis Linkage and 380V Power Supply Vertical Machining Center

Product name	Vertical Automatic Specialized Polishing Machining Center Automatic 4 Axis Cnc Vertical Machining Center
Core Components	PLC, Engine, Motor
Power (kW)	10
Weight (KG)	2000
Key Selling Points	Automatic
Warranty	1 Year
Applicable Industries	Machinery Repair Shops, Manufacturing Plant
Showroom Location	None
x-axis route	250mm
y-axis route	450mm
z-axis route	350mm
A-axis route	-1°~365°
c-axis route	-30°~390°
rotary table	192mm
Rotating Speed	0~10000
X Y Z Fast-forward speed	25X25X20
positioning	±0.025
Power supply	380V-10KVA

Resume: This equipment is a kind of five-axis linkage CNC polishing equipment. CNC control system, programm according to the outline of the product; The product is fixed manually on the fixture (vacuum suction); The precision motor is driven by G code to move according to product profile; The grinding head drives the sandpaper(or other consumables) to pressurize the surface of the product for polishing; After the product is recycled, the polishing effect meets the standard requirements. Functional characteristics: Five work turntables move synchronously, processing five identical workpieces at the same time Adapted to grinding the cell phone shell arc surface and side arc surface High productivity and stable quality No dust, no risk of dust explosion, clean environmental protection (spray) Overview of automated procedure: The whole machine adopts CNC control system, five-axis linkage motion profile, high-precision interpolation, high-speed response; High-precision high- power servo motor drive; The driving product is modeled according to its own profile; At the same time (rotating vibration polishing wheel sticky sandpaper) sandpaper to polish the product; After the recycling process, the polishing effect of the product meets the requirements of the standard, and 5 products can be processed at the same time. Add water to dedust, cool, and decontaminate. Electrical control overview: The system controls the entire machine to perform automatic grinding Automatic control, monitoring, counting, alarm Single-action operation is available (for machine adjustment or special circumstances) Different graphic G code can be imported according to different products Applicable product size: Minimum size: 45 X 60mm Maximum size: diagonal size not exceeding 190mm Lower tilt Radian angle: ﹤18 ° It can be adjusted according to the workpiece size to adapt to the production of similar products. Suitable Height Size: Max ~ 20x80mm (available upon customer’s requests) Applicable product coverage: This product is suitable for surface polishing, other processes are not included in the equipment specifications. Power supply: The user's primary power supply is three-phase 380V 50/60Hz 8.5 KVA Require the preparation of non-instantaneous power outages, non-noise high-quality power supplies(usually power outages do not affect equipment components and software changes, but it is recommended that users must remove the product in production and return the equipment to the origin during power outages) Air pressure: Use factory air pressure 0.4 Mpa above(dry air required) Customer(primary side) airframe supply port: air filter + aerosol separator Gas consumption: ≥40L/min, it is recommended that the customer should provide sufficient volume and a certain supercharged gas capacity Tank at a time. The recommended specification is: the pressure is not less than 0.75 kgf/cm, and the volume is not less than 50L(or dedicated pressure tank). Otherwise, in individual cases, it may cause problems such as the equipment's abnormal operation and the reduction of the mount rate. DC power supply：24V-200W Leakage switch：64A Button switch：/ Electric relay：24V

Q:Are you a factory or a trader？
A:We are a manufacturer（factory）

Q 1:Our company's history and background？

A1:DongGuan Jinzhu Machine Equipment Co.,Itd,Was Founded In 2006.Focusing on the resarch
and development ,production,and sales of industrial machinery and equipment,with over 15 years of industry experience.
Q 2: Our company culture?
A2:We adhere to the core values of "innovation, quality, and service" and are committed to providing customers with the highest quality mechanical equipment and solutions.
Q3:How to view the current development trend of the machinery industry?

A3: We believe that intelligence, automation, and green environmental protection are the main development trends in the current machinery industry, and we will continue to invest in research and development to meet market demand.
Q4: What are your main products?

A4: We mainly produce industrial machinery and equipment, including but not limited to automatic polishing machines, automatic wire drawing machines, automatic spinning machines, etc.
Q5: How to obtain technical support if the device malfunctions?

A5: You can submit a fault report through our customer service hotline or online technical support platform, and our technical team will respond as soon as possible and provide a solution
Q6: To Which Countries Are The Products Mainly Exported?

A6: Our Products Have Been Exported To Multiple Countries And Regions Around The World, Including Europe, North America, Southeast Asia, Etc..
Q7: Do you accept customized requirements?

A7: Yes, we accept customized needs from customers and can design and produce mechanical equipment according to their specific requirements.
Q8: How to conduct product procurement?

A8: You can obtain product quotations and procurement process information through our official website or by contacting a sales representative.
