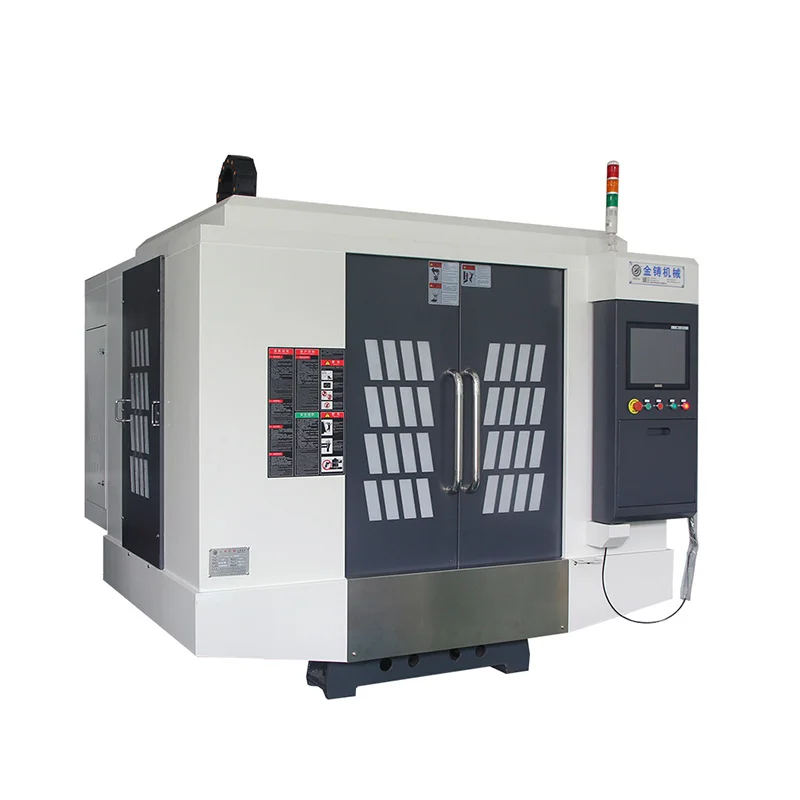

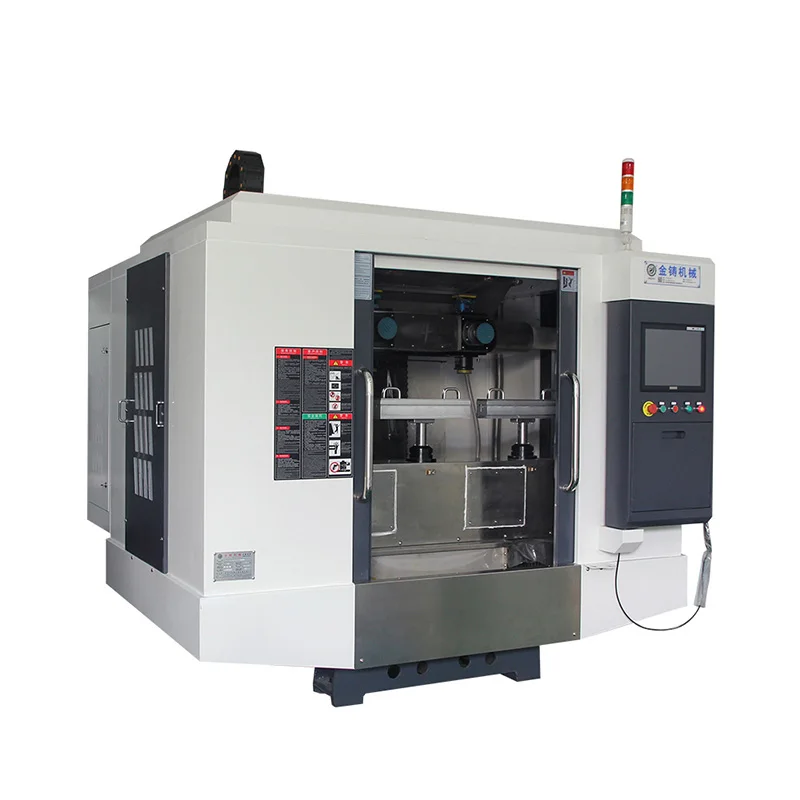

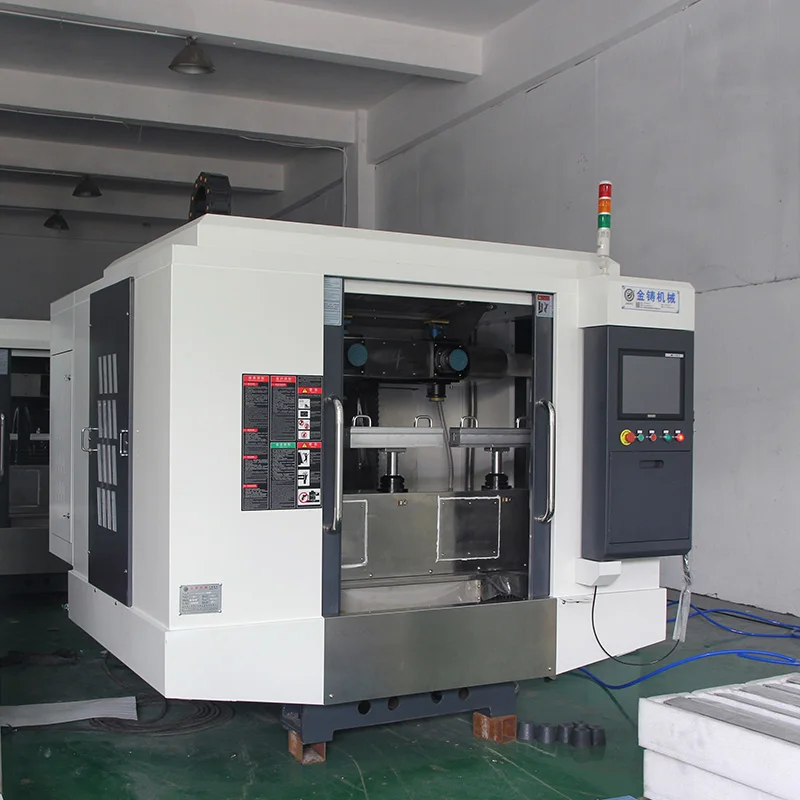

5 Axis CNC Polishing Machine with 10 kW Power and 2800 kg Weight for High Precision Metal Processing

Name: 5 Axis CNC Polishing Machine with 10 kW Power and 2800 kg Weight for High Precision Metal Processing
Brand: JINZHU
Price: 47 USD

Buy cheap 5 Axis CNC Polishing Machine with 10 kW Power and 2800 kg Weight for High Precision Metal Processing product

Place of Origin : Guangdong, China

Brand Name : JINZHU

MOQ : 1

Price : $47,000-48,000

Power : 10 kW

Weight : 2800 kg

Dimension : 2200*2480*2365 mm

Material : metal

Z-axis motor : 2.3 kW

X-axis motor : 2.0 kW

Y-axis motor : 2.0 kW

A-axis motor : 1 kW

C-axis motor : 1 kW

Voltage : 380-50 Hz

Power consumption : 9.5 KW

Min size : 45 X 60 mm

Max size : diagonal ≤190 mm

Max height : 20x80 mm

Air pressure : 0.4 Mpa

Contact Now

5 Axis CNC Polishing Machine with 10 kW Power and 2800 kg Weight for High Precision Metal Processing

Product name	Hardware Processing Auto 5 Axis CNC Polishing Machine Small Machining Center Cnc Lathe Machine Vertical Machining Center
Core Components	PLC, Engine, Motor
Power (kW)	10
Key Selling Points	Automatic
Warranty	1 Year
Showroom Location	None
Z-axis Servo Motors	2.3KW
X-axis Servo Motors	2.0KW
Y-axis Servo Motors	2.0KW
A-axis Rotary Servo Motors	1KW
c-axis Rotary Servo Motors	1KW
machine size	220024802365mm
Weight	2800kg

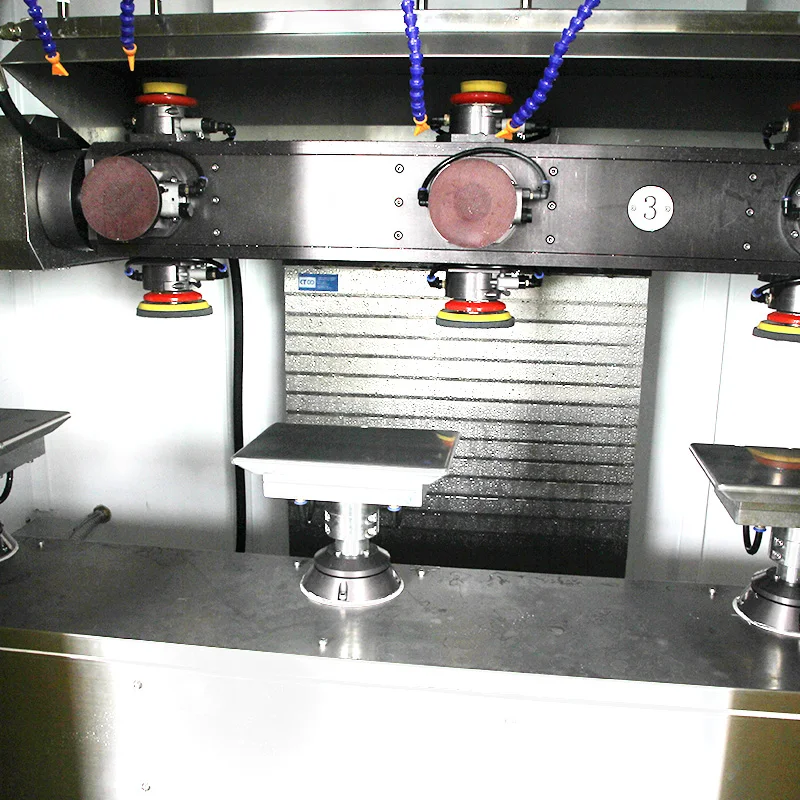

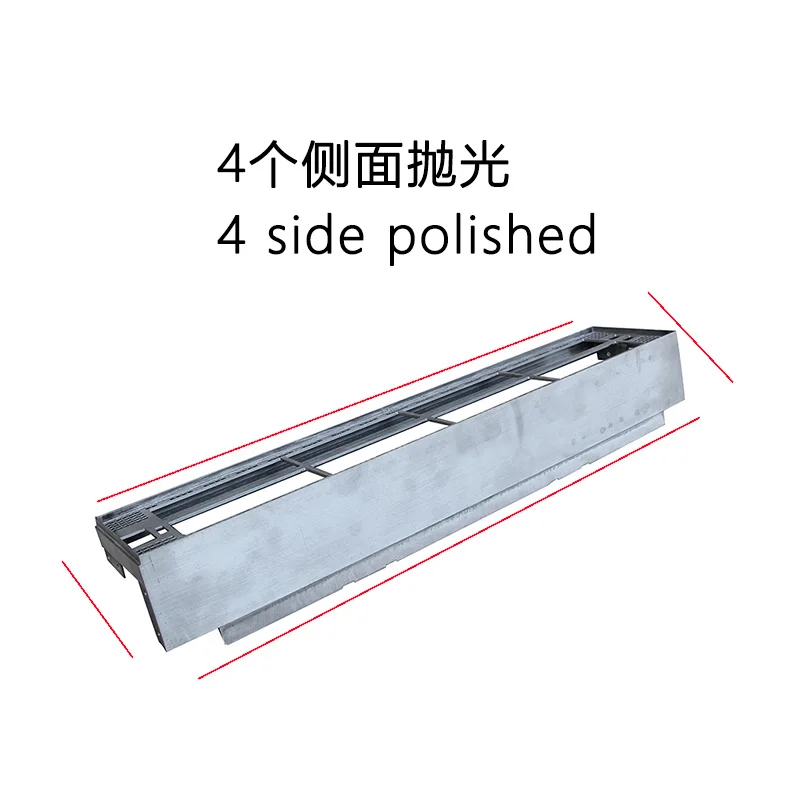

Resume: This equipment is a kind of five-axis linkage CNC polishing equipment. CNC control system, programm according to the outline of the product; The product is fixed manually on the fixture (vacuum suction); The precision motor is driven by G code to move according to product profile; The grinding head drives the sandpaper(or other consumables) to pressurize the surface of the product for polishing; After the product is recycled, the polishing effect meets the standard requirements. Functional characteristics: Five work turntables move synchronously, processing five identical workpieces at the same time Adapted to grinding the cell phone shell arc surface and side arc surface High productivity and stable quality No dust, no risk of dust explosion, clean environmental protection (spray) Overview of automated procedure: The whole machine adopts CNC control system, five-axis linkage motion profile, high-precision interpolation, high-speed response; High-precision high- power servo motor drive; The driving product is modeled according to its own profile; At the same time (rotating vibration polishing wheel sticky sandpaper) sandpaper to polish the product; After the recycling process, the polishing effect of the product meets the requirements of the standard, and 5 products can be processed at the same time. Add water to dedust, cool, and decontaminate. Electrical control overview: The system controls the entire machine to perform automatic grinding Automatic control, monitoring, counting, alarm Single-action operation is available (for machine adjustment or special circumstances) Different graphic G code can be imported according to different products Applicable product size: Minimum size: 45 X 60mm Maximum size: diagonal size not exceeding 190mm Lower tilt Radian angle: ﹤18 ° It can be adjusted according to the workpiece size to adapt to the production of similar products. Suitable Height Size: Max ~ 20x80mm (available upon customer’s requests) Applicable product coverage: This product is suitable for surface polishing, other processes are not included in the equipment specifications. Power supply: The user's primary power supply is three-phase 380V 50/60Hz 8.5 KVA Require the preparation of non-instantaneous power outages, non-noise high-quality power supplies(usually power outages do not affect equipment components and software changes, but it is recommended that users must remove the product in production and return the equipment to the origin during power outages) Air pressure: Use factory air pressure 0.4 Mpa above(dry air required) Customer(primary side) airframe supply port: air filter + aerosol separator Gas consumption: ≥40L/min, it is recommended that the customer should provide sufficient volume and a certain supercharged gas capacity Tank at a time. The recommended specification is: the pressure is not less than 0.75 kgf/cm, and the volume is not less than 50L(or dedicated pressure tank). Otherwise, in individual cases, it may cause problems such as the equipment's abnormal operation and the reduction of the mount rate. DC power supply：24V-200W Leakage switch：64A Button switch：/ Electric relay：24V
